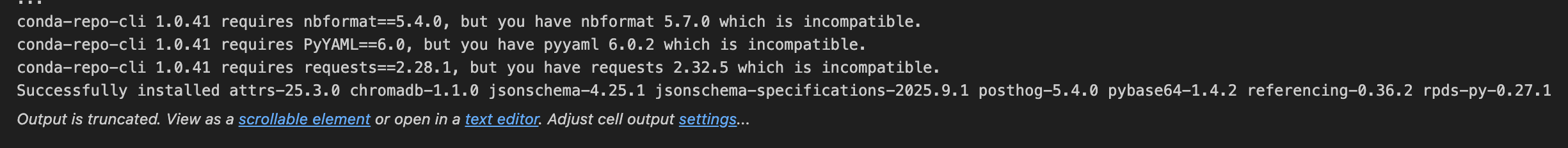

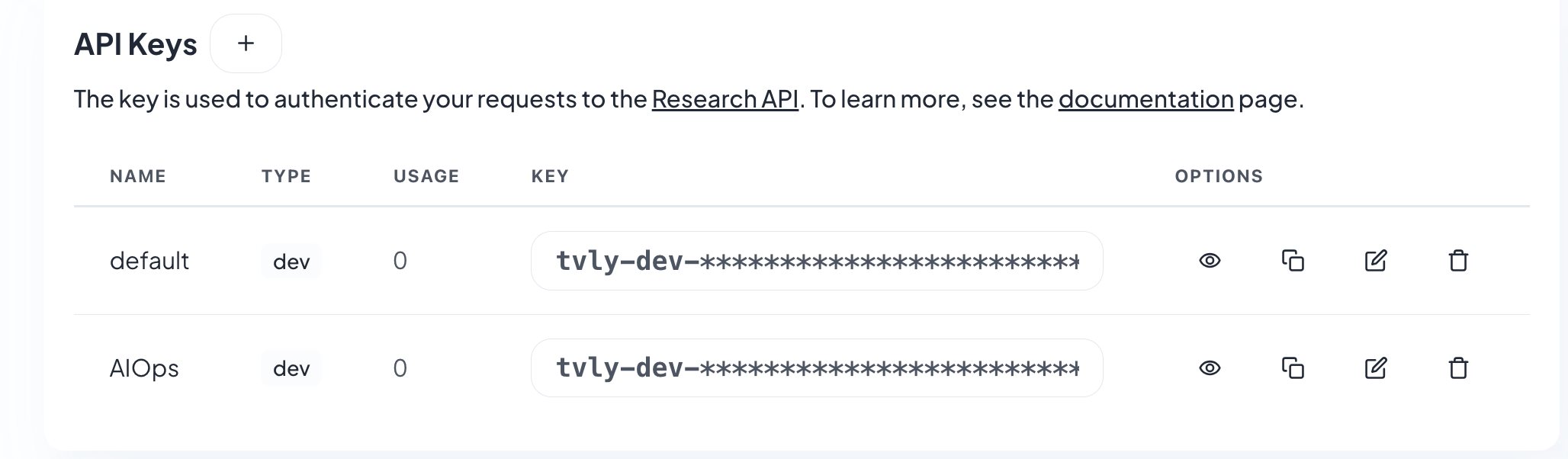

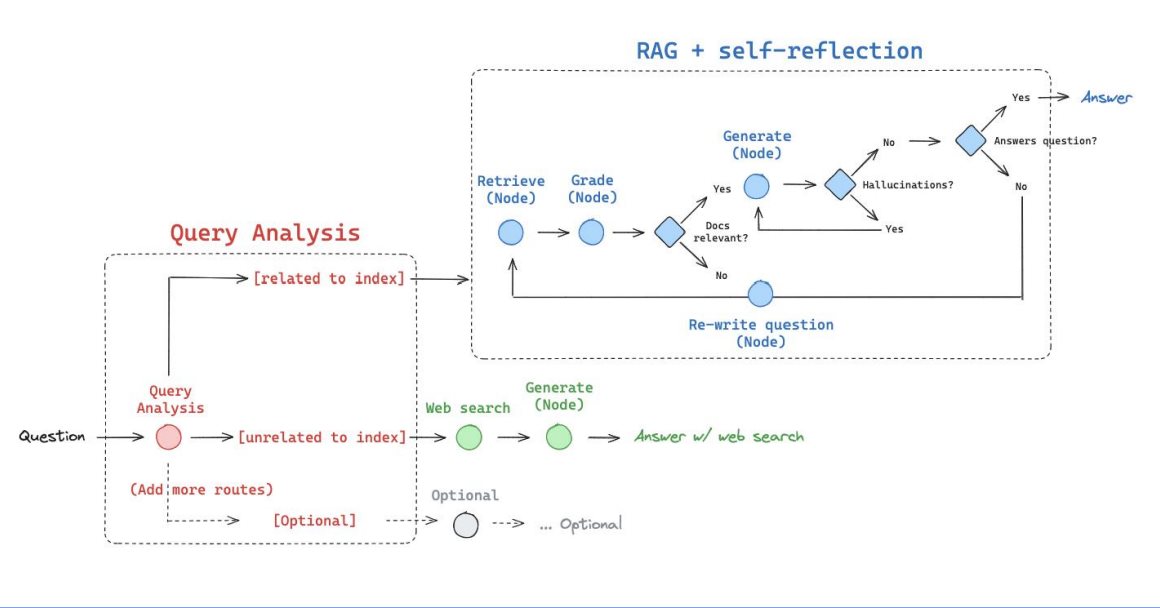

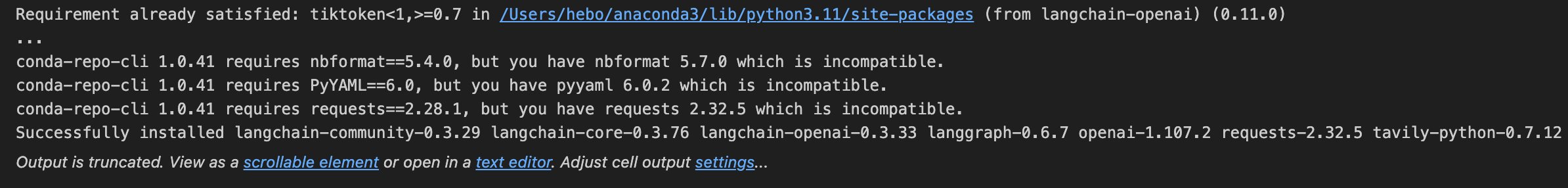

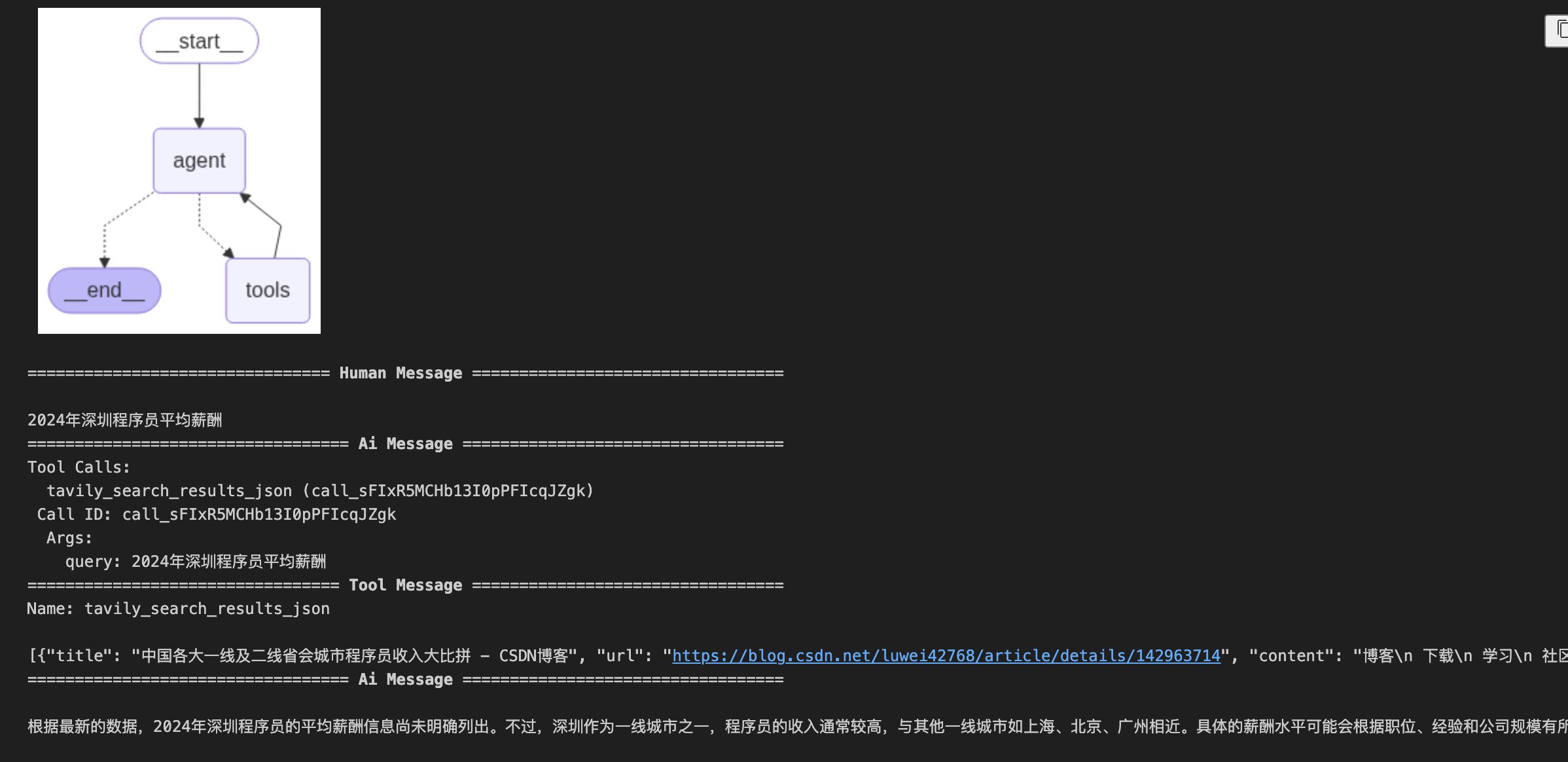

>#LangGraph实现自适应RAGAgent [TOC] 原理 ------------ tn2>基于论文： https://arxiv.org/abs/2403.14403 <br/> 核心点： Web搜索工具：针对近期事件的搜索 自适应RAG工具：针对知识库相关问题 路由器：判断问题交由Web搜索还是RAG处理  tn2>这幅图讲述了它的执行过程： 1.用户先提出一个问题。 2.路由器判断问题是要查最新事件还是知识库。 3.如果是最新事件，就走 Web 搜索工具。 4.如果是知识库问题，就走自适应 RAG 工具。 5.系统最后把结果整理好输出给用户。 Web搜索：Tavily ------------  tn2>使用Tavily执行网络搜索，让LLM感知现实世界。 ### 特点 tn2>快速响应：相比较搜索引擎能更快返回结果 良好摘要：无需加载页面的所有内容 结果优化：针对LLM优化的搜索结果，提高准确率 SaaS服务，需申请Key: https://app.tavily.com  tn2>这里我们创建AIOps的key，然后我们创建一个文件夹并创建一个`tavily.ipynb`文件，然后安装相关依赖包。 ```bash ! pip install -U langgraph langchain-openai tavily-python langchain-community ```  tn2>下面在这段代码里，我主要是用 LangChain + LangGraph 搭建了一个最简单的智能体工作流。 核心思路是：先定义一个基于 GPT-4o 的模型，并给它绑定了 Tavily 搜索工具。然后通过一个路由函数来判断：如果模型生成的消息里包含工具调用，就跳转到工具节点执行，否则直接结束。整个流程被抽象成了一个 有条件的状态图（StateGraph），其中节点之间的关系用 add_node 和 add_edge 来描述。最后我把这个工作流编译运行，不仅可以流式输出查询结果（例如“2024 年深圳程序员平均薪酬”），还能绘制出整个流程图，直观地展示智能体在运行时的结构和逻辑。 ```python import os from langchain_openai import ChatOpenAI from typing import Literal from langchain_core.tools import tool from IPython.display import Image, display from langgraph.prebuilt import ToolNode from langgraph.graph import StateGraph, MessagesState from langchain_community.tools.tavily_search import TavilySearchResults os.environ["LANGCHAIN_TRACING_V2"] = "true" os.environ["LANGCHAIN_ENDPOINT"] = "https://api.smith.langchain.com" os.environ["LANGCHAIN_API_KEY"] = "你的Langchain的Key" # LangSmith 项目名称，默认 default os.environ["LANGCHAIN_PROJECT"] = "default" # Tavily API Key os.environ["TAVILY_API_KEY"] = "你的Tavily Key" def call_model(state: MessagesState): messages = state["messages"] response = model_with_tools.invoke(messages) return {"messages": [response]} def should_continue(state: MessagesState) -> Literal["tools", "__end__"]: messages = state["messages"] last_message = messages[-1] if last_message.tool_calls: return "tools" return "__end__" tools = [TavilySearchResults(max_results=1)] model_with_tools = ChatOpenAI(model="gpt-4o", temperature=0, api_key="你的OpenAPI Key" ).bind_tools(tools) tool_node = ToolNode(tools) workflow = StateGraph(MessagesState) workflow.add_node("agent", call_model) workflow.add_node("tools", tool_node) workflow.add_edge("__start__", "agent") workflow.add_conditional_edges( "agent", should_continue, ) workflow.add_edge("tools", "agent") app = workflow.compile() try: display(Image(app.get_graph().draw_mermaid_png())) except Exception: pass for chunk in app.stream( {"messages": [("human", "2024年深圳程序员平均薪酬")]}, stream_mode="values" ): chunk["messages"][-1].pretty_print() ```  自适应RAG ------------ tn2>基于论文： https://arxiv.org/abs/2310.11511 特点： ?对检索到的文档和生成的回答进行反思和评分，直到获得满意的回答 ?解决传统RAG粗暴检索固定数量段落以及回复准确性差的问题 ?显著提升长文本检索的准确性  ### 自适应RAG流程  ## 流程梳理 tn2>1.评估检索到的文档与用户问题是否相关 2.评估 LLM 回答的问题是否基于事实（检索到的文档） 3.评估 LLM 的回答是否解决了用户提出的问题 4.基于检索到的文档和用户问题，对用户问题进行优化  tn2>首先安装我们的包。 ```bash ! pip install -U langchain_community tiktoken langchain-openai langchainhub chromadb langchain langgraph ```  tn2>首先我们通过如下代码设置环境变量来配置 LangSmith 的追踪功能、接口地址、API Key 以及项目名称。 ```python import os from langchain_openai import ChatOpenAI os.environ["LANGCHAIN_TRACING_V2"] = "true" os.environ["LANGCHAIN_ENDPOINT"] = "https://api.smith.langchain.com" os.environ["LANGCHAIN_API_KEY"] = "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" # LangSmith 项目名称，默认 default os.environ["LANGCHAIN_PROJECT"] = "default" ``` tn2>然后我们将我们的一个`data.md`的文件放到`data`目录下面，按标题层级切分成小块后，用 OpenAI 向量模型生成向量，并存入 Chroma 向量数据库，最终构建出一个可用于检索的 retriever。 ```python from langchain_community.vectorstores import Chroma from langchain_openai import OpenAIEmbeddings from langchain.text_splitter import MarkdownHeaderTextSplitter import uuid file_path = os.path.join('data', 'data.md') with open(file_path, 'r', encoding='utf-8') as file: docs_string = file.read() # Split the document into chunks base on markdown headers. headers_to_split_on = [ ("#", "Header 1"), ("##", "Header 2"), ("###", "Header 3"), ] text_splitter = MarkdownHeaderTextSplitter(headers_to_split_on=headers_to_split_on) doc_splits = text_splitter.split_text(docs_string) # Add to vectorDB random_directory = "./" + str(uuid.uuid4()) embedding = OpenAIEmbeddings(model="text-embedding-3-small", openai_api_key="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" ) vectorstore = Chroma.from_documents(documents=doc_splits, embedding=embedding, persist_directory=random_directory, collection_name="rag-chroma",) retriever = vectorstore.as_retriever() ``` tn2>接着通过定义 GradeDocuments 数据模型，把 LLM 封装成一个结构化输出的“文档评分器”，然后针对用户问题逐个通过每个块评估检索到的文档是否相关，并返回 yes/no 的判定结果。 ```python ### 评估检索的文档与用户问题是否相关 from langchain_core.prompts import ChatPromptTemplate from langchain_core.pydantic_v1 import BaseModel, Field from langchain_openai import ChatOpenAI # Data model class GradeDocuments(BaseModel): """Binary score for relevance check on retrieved documents.""" binary_score: str = Field( description="Documents are relevant to the question, 'yes' or 'no'" ) # LLM with function call # 温度0，不需要输出多样性 llm = ChatOpenAI(model="gpt-4o-mini", temperature=0) structured_llm_grader = llm.with_structured_output(GradeDocuments) # Prompt system = """您是一名评分员，负责评估检索到的文档与用户问题的相关性。\n 测试不需要很严格。目标是过滤掉错误的检索。\n 如果文档包含与用户问题相关的关键字或语义含义，则将其评为相关。\n 给出二进制分数“yes”或“no”，以指示文档是否与问题相关。""" grade_prompt = ChatPromptTemplate.from_messages( [ ("system", system), ("human", "Retrieved document: \n\n {document} \n\n User question: {question}"), ] ) retrieval_grader = grade_prompt | structured_llm_grader # 相关问题 question = "payment_backend 服务是谁维护的" # 不相关问题 #question = "深圳天气" docs = retriever.get_relevant_documents(question) # 观察每一个文档块的相关性判断结果 for doc in docs: print("doc: \n", doc.page_content, "\n") print(retrieval_grader.invoke({"question": question, "document": doc.page_content})) print("\n") ```  tn2>然后把 ChatOpenAI 包装成链，接收检索到的文档和用户问题作为输入，最后生成并输出结构化的回答字符串。 ```python ### 生成回复 from langchain import hub from langchain_core.output_parsers import StrOutputParser from langchain_openai import ChatOpenAI # Prompt prompt = hub.pull("rlm/rag-prompt") # LLM llm = ChatOpenAI(model_name="gpt-4o-mini",api_key="你的API Key",temperature=0) # Post-processing def format_docs(docs): return "\n\n".join(doc.page_content for doc in docs) # Chain rag_chain = prompt | llm | StrOutputParser() # Run generation = rag_chain.invoke({"context": docs, "question": question}) print(generation) ```  tn2>下面代码通过定义 GradeHallucinations 数据模型，把 ChatOpenAI 封装成一个“事实校验器”，用提示词让模型判断 生成的回答是否有依据于检索文档，并输出 yes/no 的结果。 ```python # 评估LLM 的回答是否基于事实（文档） # Data model class GradeHallucinations(BaseModel): """Binary score for hallucination present in generation answer.""" binary_score: str = Field( description="Answer is grounded in the facts, 'yes' or 'no'" ) # LLM with function call llm = ChatOpenAI(model="gpt-4o-mini", api_key="你的Api Key", temperature=0) structured_llm_grader = llm.with_structured_output(GradeHallucinations) # Prompt system = """您是一名评分员，正在评估 LLM 生成是否基于一组检索到的事实/由一组检索到的事实支持。\n 给出二进制分数“yes”或“no”。 “yes”表示答案基于一组事实/由一组事实支持。""" hallucination_prompt = ChatPromptTemplate.from_messages( [ ("system", system), ("human", "Set of facts: \n\n {documents} \n\n LLM generation: {generation}"), ] ) hallucination_grader = hallucination_prompt | structured_llm_grader hallucination_grader.invoke({"documents": docs, "generation": generation}) ```  tn2>运行结果为true，说明他是基于一个事实的回答。 接着使用代码定义了一个 GradeAnswer 数据模型，并结合 ChatOpenAI 和提示词，把 LLM 封装成一个“答案评审器”，用于判断生成的回答是否真正解决了用户的问题，并返回 yes/no 的结果。 ```python ### 评估 LLM 的回答是否解决了用户问题 # Data model class GradeAnswer(BaseModel): """Binary score to assess answer addresses question.""" binary_score: str = Field( description="Answer addresses the question, 'yes' or 'no'" ) # LLM with function call llm = ChatOpenAI(model="gpt-4o-mini", temperature=0, api_key="你的api key", ) structured_llm_grader = llm.with_structured_output(GradeAnswer) # Prompt system = """您是评分员，评估答案是否解决某个问题 \n 给出二进制分数“yes”或“no”。“yes”表示答案解决了问题。""" answer_prompt = ChatPromptTemplate.from_messages( [ ("system", system), ("human", "User question: \n\n {question} \n\n LLM generation: {generation}"), ] ) answer_grader = answer_prompt | structured_llm_grader answer_grader.invoke({"question": question, "generation": generation}) ```  tn2>接下来代码利用 ChatOpenAI 搭配提示词，把用户原始问题重写成更适合 向量数据库检索 的优化版本，并保持和用户相同的语言输出。 ```python ### 结合知识库，重写问题（基于用户问题提出新的问题） # LLM llm = ChatOpenAI(model="gpt-4o-mini", temperature=0, api_key="你的api key", ) # Prompt system = """您有一个问题重写器，可将输入问题转换为针对 vectorstore 检索进行了优化的更好版本 \n 。查看输入并尝试推断底层语义意图/含义，使用用户语言回复。""" re_write_prompt = ChatPromptTemplate.from_messages( [ ("system", system), ( "human", "Here is the initial question: \n\n {question} \n Formulate an improved question.", ), ] ) question_rewriter = re_write_prompt | llm | StrOutputParser() question_rewriter.invoke({"question": question}) ```  tn2>这样改写得更加合理。 ## 完善节点相关代码  ```python # 使用 LangGraph 构造 Agent from typing import List from typing_extensions import TypedDict class GraphState(TypedDict): """ Represents the state of our graph. Attributes: question: question generation: LLM generation documents: list of documents """ question: str generation: str documents: List[str] ``` ```python ### Nodes 节点 # 检索文档 def retrieve(state): """ Retrieve documents Args: state (dict): The current graph state Returns: state (dict): New key added to state, documents, that contains retrieved documents """ print("---RETRIEVE---") question = state["question"] # Retrieval documents = retriever.get_relevant_documents(question) return {"documents": documents, "question": question} # 生成回复 def generate(state): """ Generate answer Args: state (dict): The current graph state Returns: state (dict): New key added to state, generation, that contains LLM generation """ print("---GENERATE---") question = state["question"] documents = state["documents"] # RAG generation generation = rag_chain.invoke({"context": documents, "question": question}) return {"documents": documents, "question": question, "generation": generation} # 判断检索到的文档是否和问题相关 def grade_documents(state): """ Determines whether the retrieved documents are relevant to the question. Args: state (dict): The current graph state Returns: state (dict): Updates documents key with only filtered relevant documents """ print("----检查文档是否和问题相关----\n") question = state["question"] documents = state["documents"] # Score each doc filtered_docs = [] for d in documents: score = retrieval_grader.invoke( {"question": question, "document": d.page_content} ) grade = score.binary_score if grade == "yes": print("文档和用户问题相关\n") filtered_docs.append(d) else: print("文档和用户问题不相关\n") continue return {"documents": filtered_docs, "question": question} # 改写问题，生成更好的问题 def transform_query(state): """ Transform the query to produce a better question. Args: state (dict): The current graph state Returns: state (dict): Updates question key with a re-phrased question """ print("改写问题\n") question = state["question"] documents = state["documents"] # Re-write question better_question = question_rewriter.invoke({"question": question}) print("LLM 改写优化后更好的提问：", better_question) return {"documents": documents, "question": better_question} ### Edges def decide_to_generate(state): """ Determines whether to generate an answer, or re-generate a question. Args: state (dict): The current graph state Returns: str: Binary decision for next node to call """ print("访问检索到的相关知识库\n") state["question"] filtered_documents = state["documents"] if not filtered_documents: # All documents have been filtered check_relevance # We will re-generate a new query print("所有的文档都不相关，重新生成问题\n") return "transform_query" else: # We have relevant documents, so generate answer print("文档和问题相关，生成回答") return "generate" # 评估生成的回复是否基于知识库事实（是否产生了幻觉） def grade_generation_v_documents_and_question(state): """ Determines whether the generation is grounded in the document and answers question. Args: state (dict): The current graph state Returns: str: Decision for next node to call """ print("评估生成的回复是否基于知识库事实（是否产生了幻觉）\n") question = state["question"] documents = state["documents"] generation = state["generation"] score = hallucination_grader.invoke( {"documents": documents, "generation": generation} ) grade = score.binary_score # Check hallucination if grade == "yes": print("生成的回复是基于知识库，没有幻觉\n") # 评估LLM 的回答是否解决了用户问题 score = answer_grader.invoke({"question": question, "generation": generation}) grade = score.binary_score if grade == "yes": print("问题得到解决\n") return "useful" else: print("问题没有得到解决\n") return "not useful" else: print("生成的回复不是基于知识库，继续重试……\n") return "not supported" ``` ```python from langgraph.graph import END, StateGraph, START from IPython.display import Image, display workflow = StateGraph(GraphState) # 添加 Nodes workflow.add_node("retrieve", retrieve) # 检索文档 workflow.add_node("grade_documents", grade_documents) # 判断检索到的文档是否和问题相关 workflow.add_node("generate", generate) # 生成回复 workflow.add_node("transform_query", transform_query) # 改写问题，生成更好的问题 # 生成有向有环图 workflow.add_edge(START, "retrieve") workflow.add_edge("retrieve", "grade_documents") # 给 grade_documents 添加条件边，判断 decide_to_generate 函数返回的结果 # 如果函数返回 "transform_query"，则跳转到 transform_query 节点 # 如果函数返回 "generate"，则跳转到 generate 节点 workflow.add_conditional_edges( "grade_documents", # 条件：评估检索到的文档是否和问题相关，如果不相关则重新检索，如果相关则生成回复 decide_to_generate, { "transform_query": "transform_query", "generate": "generate", }, ) workflow.add_edge("transform_query", "retrieve") # 给 generate 添加条件边，判断 grade_generation_v_documents_and_question 函数返回的结果 # 如果函数返回 "useful"，则跳转到 END 节点 # 如果函数返回 "not useful"，则跳转到 transform_query 节点 # 如果函数返回 "not supported"，则跳转到 generate 节点 workflow.add_conditional_edges( "generate", # 条件：评估生成的回复是否基于知识库事实（是否产生了幻觉），是则评估答案准确性，否则重新生成问题 grade_generation_v_documents_and_question, { "not supported": "generate", "useful": END, "not useful": "transform_query", }, ) # Compile app = workflow.compile() try: display(Image(app.get_graph().draw_mermaid_png())) except Exception: pass ```  tn2>最后我们问一个问题运行测试一下试试看。 ```python from pprint import pprint # 简单问题 # inputs = {"question": "payment_backend 服务是谁维护的？"} # 复杂问题 inputs = {"question": "谁管理的服务数量最多？"} for output in app.stream(inputs): for key, value in output.items(): # Node pprint(f"Node '{key}':") # Optional: print full state at each node # pprint.pprint(value["keys"], indent=2, width=80, depth=None) pprint("\n---\n") # Final generation pprint(value["generation"]) ```  结合WebSearch和Self-RAG ------------ tn2>添加如下代码: ```python # 问题分流路由器：将问题分流到 Self-RAG 或者搜索引擎 class RouteQuery(BaseModel): """Route a user query to the most relevant datasource.""" datasource: Literal["vectorstore", "web_search"] = Field( ..., description="Given a user question choose to route it to web search or a vectorstore.", ) def route_question(state): """ Route question to web search or RAG. Args: state (dict): The current graph state Returns: str: Next node to call """ llm = ChatOpenAI(model="gpt-4o-mini",api_key="你的API Key", temperature=0) structured_llm_router = llm.with_structured_output(RouteQuery) # Prompt system = """您是将用户问题路由到 vectorstore 或 web_search 的专家。 vectorstore 包含运维、工单、微服务、网关、工作负载、日志等相关内容，使用 vectorstore 来回答有关这些主题的问题。 否则，请使用 web_search""" route_prompt = ChatPromptTemplate.from_messages( [ ("system", system), ("human", "{question}"), ] ) question_router = route_prompt | structured_llm_router print("---开始分流问题---") question = state["question"] source = question_router.invoke({"question": question}) if source.datasource == "web_search": print("---问题分流到网络搜索---") return "web_search" elif source.datasource == "vectorstore": print("---问题分流到知识库向量检索---") return "vectorstore" ### Search from langchain_community.tools.tavily_search import TavilySearchResults from langchain.schema import Document web_search_tool = TavilySearchResults(k=3) # 网络搜索 def web_search(state): """ Web search based on the re-phrased question. Args: state (dict): The current graph state Returns: state (dict): Updates documents key with appended web results """ print("---进行网络搜索---") question = state["question"] # Web search docs = web_search_tool.invoke({"query": question}) web_results = "\n".join([d["content"] for d in docs]) web_results = Document(page_content=web_results) return {"documents": web_results, "question": question} ``` ```python from langgraph.graph import END, StateGraph, START from IPython.display import Image, display workflow = StateGraph(GraphState) # 添加 Nodes workflow.add_node("web_search", web_search) # web search workflow.add_node("retrieve", retrieve) # 检索文档 workflow.add_node("grade_documents", grade_documents) # 判断检索到的文档是否和问题相关 workflow.add_node("generate", generate) # 生成回复 workflow.add_node("transform_query", transform_query) # 改写问题，生成更好的问题 # 定义有向有环图 workflow.add_conditional_edges( START, route_question, { "web_search": "web_search", "vectorstore": "retrieve", }, ) workflow.add_edge("web_search", "generate") workflow.add_edge("retrieve", "grade_documents") # 给 grade_documents 添加条件边，判断 decide_to_generate 函数返回的结果 # 如果函数返回 "transform_query"，则跳转到 transform_query 节点 # 如果函数返回 "generate"，则跳转到 generate 节点 workflow.add_conditional_edges( "grade_documents", # 条件：评估检索到的文档是否和问题相关，如果不相关则重新检索，如果相关则生成回复 decide_to_generate, { "transform_query": "transform_query", "generate": "generate", }, ) workflow.add_edge("transform_query", "retrieve") # 给 generate 添加条件边，判断 grade_generation_v_documents_and_question 函数返回的结果 # 如果函数返回 "useful"，则跳转到 END 节点 # 如果函数返回 "not useful"，则跳转到 transform_query 节点 # 如果函数返回 "not supported"，则跳转到 generate 节点 workflow.add_conditional_edges( "generate", # 条件：评估生成的回复是否基于知识库事实（是否产生了幻觉），是则评估答案准确性，否则重新生成问题 grade_generation_v_documents_and_question, { "not supported": "generate", "useful": END, "not useful": "transform_query", }, ) # Compile app = workflow.compile() try: display(Image(app.get_graph().draw_mermaid_png())) except Exception: pass ``` tn2>然后我们进行测试两个问题，一个会进行从知识库回答，一个会从网络中搜索回答。 ```python from pprint import pprint # 向量匹配问题 #inputs = {"question": "谁管理的服务数量最多？"} # 搜索问题 inputs = {"question": "深圳最近的新闻"} for output in app.stream(inputs): for key, value in output.items(): # Node pprint(f"Node '{key}':") # Optional: print full state at each node # pprint.pprint(value["keys"], indent=2, width=80, depth=None) pprint("\n---\n") # Final generation pprint(value["generation"]) ```
