.netCore3.1 consul服务集群

电脑版发表于:2020/3/3 15:43

前言


Consul是一种服务网络解决方案,可跨任何运行时平台以及公共或私有云连接和保护服务

简而言之:集群


下载地址



环境版本:vs2019

框架版本:.netCore 3.1

BTW:.netCore 3.1 Ocelot 支持!

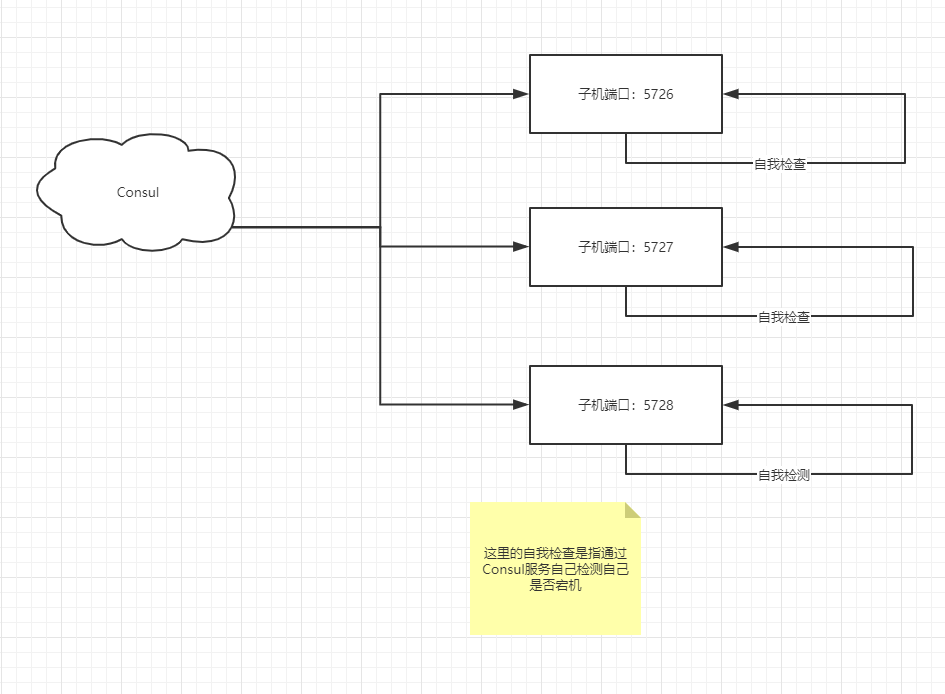

实验目标如下图所示




运用 Consul


下载完后 Consul 是不需要任何安装的


通过 cmd 到当前目录执行如下命令:

consul.exe agent -dev


如下图所示:

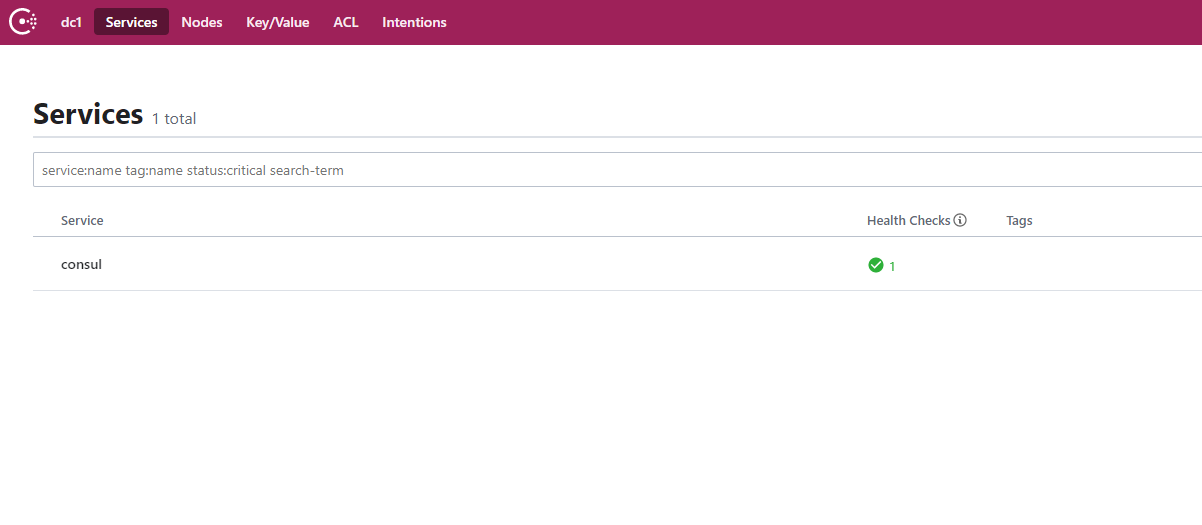

如图可以看到网站地址为: 127.0.0.1:8500

访问该连接康康




创建 .netCore 3.1 WebApi 项目与日志建立

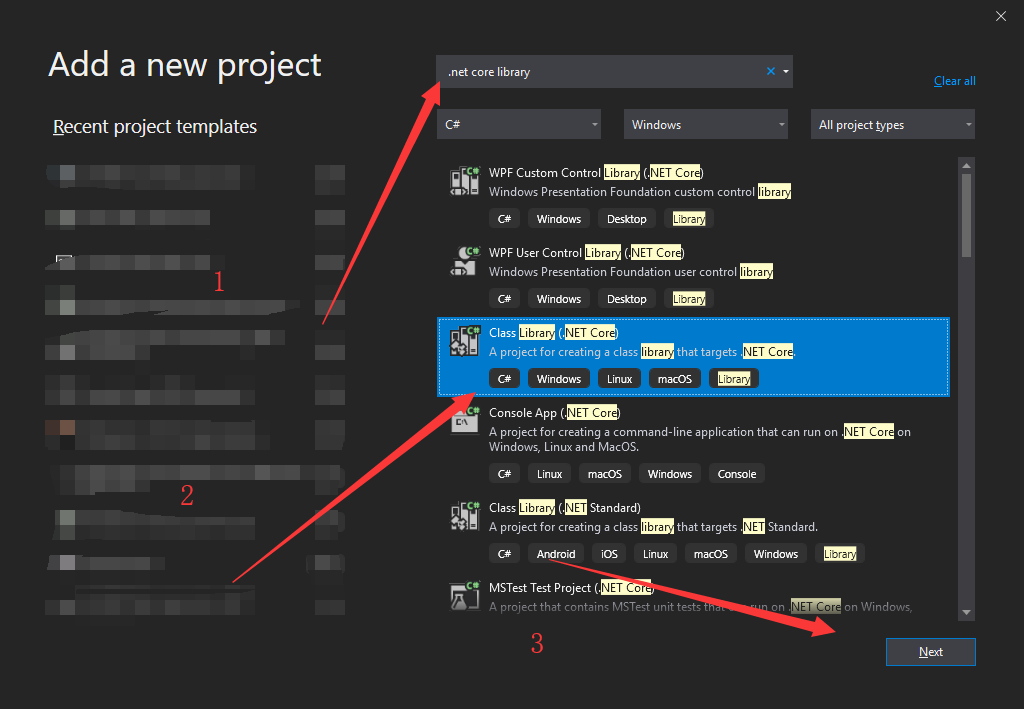

1. 创建项目 AiDaSi.OcDemo.ServiceInstance



2. 添加新项目 GlobleLibraryLog



3. 创建完成后双击项目名称并添加相关依赖项

<Project Sdk="Microsoft.NET.Sdk">

  <PropertyGroup>
    <TargetFramework>netcoreapp3.1</TargetFramework>
  </PropertyGroup>

  <ItemGroup>
    <PackageReference Include="Serilog" Version="2.9.0" />
    <PackageReference Include="Serilog.AspNetCore" Version="3.2.0" />
    <PackageReference Include="Serilog.Sinks.Console" Version="3.1.1" />
    <PackageReference Include="Serilog.Sinks.File" Version="4.1.0" />
  </ItemGroup>
</Project>


4. 在此项目中创建 SerilogConfigurationLog.cs

public static class SerilogConfigurationLog
{
    /// <summary>
    /// 创建全局Logger
    /// </summary>
    public static void InitConfig()
    {
        //日志设置
        Log.Logger = new LoggerConfiguration()
                       .MinimumLevel.Debug()
                       .MinimumLevel.Override("Microsoft", Serilog.Events.LogEventLevel.Information)
                       .Enrich.FromLogContext()
                       .WriteTo.Console()
                       .WriteTo.File(new CompactJsonFormatter(), Path.Combine("logs", DateTime.Now.ToString("yyyyMMddhhmmss") + ".txt"))
                       .CreateLogger();
    }
}



5. 双击 AiDaSi.OcDemo.ServiceInstance 并添加相关依赖项


<Project Sdk="Microsoft.NET.Sdk.Web">

  <PropertyGroup>
    <TargetFramework>netcoreapp3.1</TargetFramework>
  </PropertyGroup>

  <ItemGroup>
    <PackageReference Include="Consul" Version="0.7.2.6" />
    <PackageReference Include="Microsoft.VisualStudio.Web.CodeGeneration.Design" Version="3.1.1" />
    <PackageReference Include="Serilog" Version="2.9.0" />
    <PackageReference Include="Serilog.AspNetCore" Version="3.2.0" />
    <PackageReference Include="Serilog.Extensions.Logging" Version="3.0.1" />
    <PackageReference Include="Serilog.Sinks.Console" Version="3.1.1" />
    <PackageReference Include="Serilog.Sinks.File" Version="4.1.0" />
  </ItemGroup>

  <ItemGroup>
    <ProjectReference Include="..\GlobleLibraryLog\GlobleLibraryLog.csproj" />
  </ItemGroup>

</Project>


6. 添加 Serilog 日志


修改 Program.cs

public class Program
{
    public static void Main(string[] args)
    {
        //初始化日志系统
        SerilogConfigurationLog.InitConfig();
        //支持命令行参数
        new ConfigurationBuilder()
            .SetBasePath(Directory.GetCurrentDirectory())
            .AddCommandLine(args).Build();

        CreateHostBuilder(args).Build().Run();
    }

    public static IHostBuilder CreateHostBuilder(string[] args) =>
        Host.CreateDefaultBuilder(args)
        .ConfigureLogging((context, loggingBuilder) => {
            loggingBuilder.AddFilter("Microsoft", LogLevel.Warning);
            loggingBuilder.AddFilter("System", LogLevel.Warning);
            loggingBuilder.AddSerilog();
        })
            .ConfigureWebHostDefaults(webBuilder =>
            {
                webBuilder.UseStartup<Startup>();
            }).UseSerilog();
}

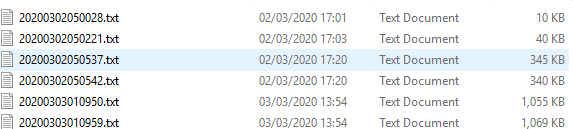

日志输出到 logs目录


注册服务到 Consul 中


1. 在项目创建文件夹 Utility 并创建 ConsulHelper.cs


2. ConsulHelper.cs 代码如下

public static class ConsulHelper
{
    public static void ConsulRegist(this IConfiguration configuration)
    {
        //创建Consul客户端
        ConsulClient client = new ConsulClient(c=> {
            c.Address = new Uri("http://127.0.0.1:8500/");
            c.Datacenter = "dc1";
        });
        //重命令行中获取 ip port weight(权重) 目的是重复反向代理
        string ip = configuration["ip"];
        int port =int.Parse(configuration["port"]);
        //当为空时权重为 10
        int weight = string.IsNullOrWhiteSpace(configuration["weight"]) ? 10 : int.Parse(configuration["weight"]);
        client.Agent.ServiceRegister(new AgentServiceRegistration()
        {
            ID = "service" + Guid.NewGuid(),//唯一的
            Name = "AiDaSiService",//服务组名称
            Address = ip,//ip需要改动
            Port = port,//不同实例
            Tags = new string[] { weight.ToString() }, //权重设置
            Check = new AgentServiceCheck() //健康检测
            {
                Interval = TimeSpan.FromSeconds(12), //每隔多久检测一次
                HTTP= $"http://{ip}:{port}/api/Health/Index", //检测地址
                Timeout=TimeSpan.FromSeconds(5), //多少秒为超时
                DeregisterCriticalServiceAfter = TimeSpan.FromSeconds(5) //在遇到异常后关闭自身服务通道
            }
        });
    }
}


ServiceRegister 参数设置

变量名称变量类型说明
IDstring唯一的子机在服务中的名称
Namestring服务组名称
Addressstring服务子机IP
Portint服务子机端口
Tagsstring[]权重设置
CheckAgentServiceCheck方法方法类型说明IntervalTimeSpan?每隔多久检测一次HTTPstring检测地址TimeoutTimeSpan?多少秒为超时DeregisterCriticalServiceAfterTimeSpan?在遇到异常后关闭自身服务通道


从检测地址来看我们需要创建一个 HealthController.cs Api空控制器

[Route("api/[controller]")]
[ApiController]
public class HealthController : ControllerBase
{
    private readonly ILogger<HealthController> _logger;
    private readonly IConfiguration _configuration;
    public HealthController(ILogger<HealthController> logger, IConfiguration configuration)
    {
        _logger = logger;
        _configuration = configuration;
    }
    [HttpGet]
    [Route("Index")]
    public IActionResult Index()
    {
        _logger.LogWarning($"This is HealthController {_configuration["port"]}");
        return Ok();
    }
}


再创建一个 StudentsController Api控制器

[Route("api/[controller]")]
[ApiController]
public class StudentsController : ControllerBase
{
    private readonly ILogger<StudentsController> _logger;
    private readonly IConfiguration _configuration;

    public StudentsController(ILogger<StudentsController> logger, IConfiguration configuration)
    {
        _logger = logger;
        _configuration = configuration;
    }
    // GET: api/Students
    [HttpGet]
    public IEnumerable<string> Get()
    {
        this._logger.LogWarning("This is StudentsController Get");

        List<string> listnew = new List<string>
        {
            "Api:value1",
            "Api:value2",
            "Api:value3",
            "Api:value4",
           _configuration["port"],
            DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss fff")
        };
        return listnew;
    }

    // GET: api/Students/5
    [HttpGet("{id}", Name = "Get")]
    public string Get(int id)
    {
        List<string> listnew = new List<string>
        {
            "Api:value1",
            "Api:value2",
            "Api:value3",
            "Api:value4",
           _configuration["port"],
            DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss fff")
        };
        return listnew[id];
    }

}




3. 在 Startup.cs 的 Configure 方法末尾添加 ConsulHelper.cs 应用注册

this.Configuration.ConsulRegist();


4. 通过三个 powershell/bin/.netcore3.1 目录下启动三个 API


执行命令分别如下:

dotnet AiDaSi.OcDemo.ServiceInstance.dll --urls="http://*:5726" --ip="127.0.0.1" --port=5726 --weight=1
dotnet AiDaSi.OcDemo.ServiceInstance.dll --urls="http://*:5727" --ip="127.0.0.1" --port=5727 --weight=3
dotnet AiDaSi.OcDemo.ServiceInstance.dll --urls="http://*:5728" --ip="127.0.0.1" --port=5728 --weight=6


如图所示:

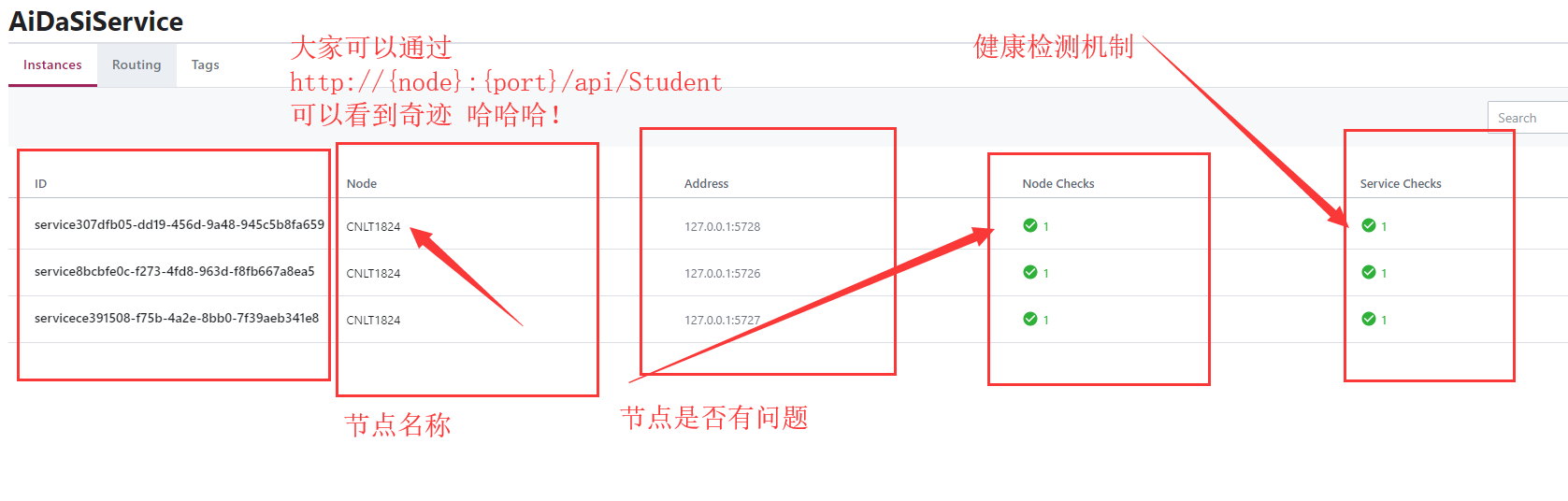

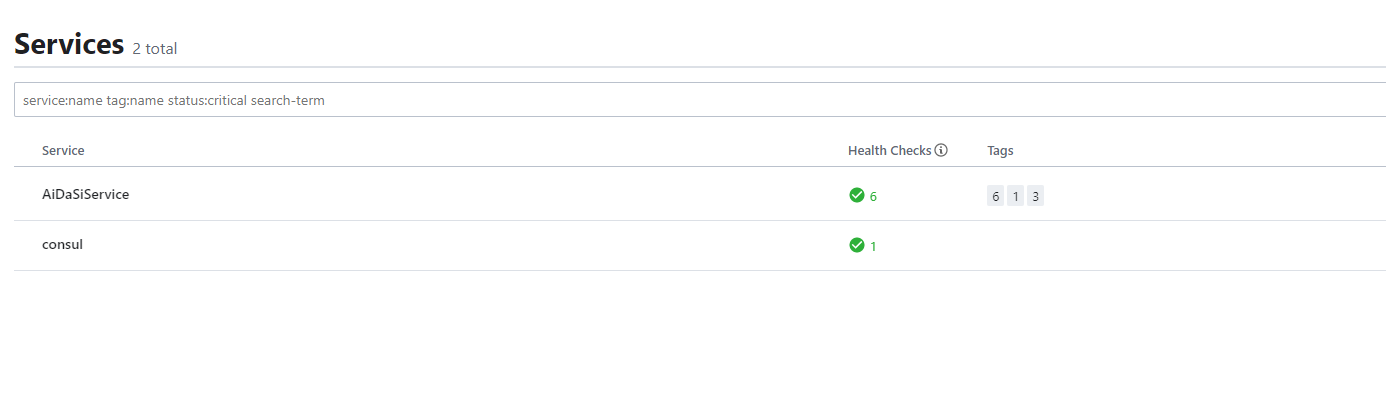

5. 这时我们来到127.0.0.1:8500 中看看




发现这里已经连接上了

Over
